The offered hydraulic bench is widely utilized for the purpose of experimentation in laboratories. This SDSU undergraduate research project consisted of circuit analysis using a Hydraulic Test Bench which contained a pump and variety of valves.
Hydraulic Bench With Accessories
The unit is an ideal service unit for conducting student projects.
Uses of hydraulic bench. Hydraulic bench is a very useful apparatus in hydraulics and fluid mechanics it is involved in majority of experiments to be conducted eg. Place the balance pan in the groove at the end of the balance arm 3. Place the empty tank on the Bench and position the balance arm on the pivot.
It is an autonomous unit with tank and pump. It is involved in majority of experiments to be conducted eg. Hydraulics is the science that studies the use of liquids especially water and fluid mechanics constitutes its theoretical basis.
Once filled no external water supply is required. Hydraulic bench by KM Esponilla. To find the value of co efficient of velocity Cv coefficient of discharge Cd and contraction C to study the characteristics of flow over notches to find met centric height in finding head losses through pipes verification of Bernoullis theorem etc.
To find the value of the co-efficient of velocity Cv coefficient of discharge Cd to study the characteristics of flow over notches to find metacentric height to find head losses through pipes to verify Bernoullis theorem etc. Leave your comment. Windshield wiper blades gear assemblies airplane body panels and wings are build using hydraulic presses.
In sword making process the flat shape is obtained by using the hydraulic press. The applications range over a huge part of the hydraulics such as the study of flow over a weir losses in pipes piping circuits Bernoullis theorem demonstration cavitation phenomenon water hammer jet. A centrifugal pump is fitted tor water circulation.
Hydraulic presses are used for most industrial purposes such as converting metallic materials into compressed sheet metals deep drawing punching metal formation blanking stamping molding forging clinching glass thinning powder compacting in cosmetic industries and tablet formation for medical use. SUMP TANKThe fluid used in hydraulic bench is stored in sump tank located at the bottom of hydraulic bench. Apr 20 2019 1058AM 0 336.
This apparatus is capable of measuring the force with which water jet strikes a plate or any other subjected object. All the trainers rely to a main hydraulic bench suggested for all as a necessary accessory suitable to use as a working bench composed of two volumetric tanks of different sizes a pump and flow measurements. Hydraulic bench is a very useful apparatus in hydraulics and fluid mechanics.
The Hydraulic Bench is of volumetric type and has been designed to provide continuous and controlled supply of water to conduct various experiments using auxiliary modules in typical Fluid Mechanics and Hydraulics Laboratory. By using different circuits and pressure gauges our research group was able to analyze the effects of pressure reducing valves directional control valves load testing hydraulic motors and sequence valves. Hydraulic Bench is an apparatus that provides controlled recirculating water supply and accurate flow meter for experiments related to Hydraulics and Fluid M.
They are commonly used for loading the shells. Other common uses include car crashing sword making and fat-free cocoa powder. Impact of jet and Orifice Discharge etc.
This research was done to test the. The Hydraulics Bench FME00 is formed by a movable hydraulics bench used to hold a wide variety of modules which allow the student to experiment with the problems presented by fluid mechanics. Level the tank 1Set up the apparatus such that the orifice is facing the sink.
De Lorenzo proposes two types of hydraulic benches one of which is composed of transparent components. Which are accessories of the Hydraulic Bench. Drain valve and over-flow are provided on the sump tank.
Hydraulic shop presses are used in most of the air force base. The Basic Hydraulic Bench is of volumetric type and has been designed to provide continuous and controlled supply of water to conduct various experiments using auxiliary modules in typical Fluid Mechanics and Hydraulics Laboratory. This is a basic unit which provides water supply and volumetric measurement services for use in conjunction with accessories for specific experiments separa.

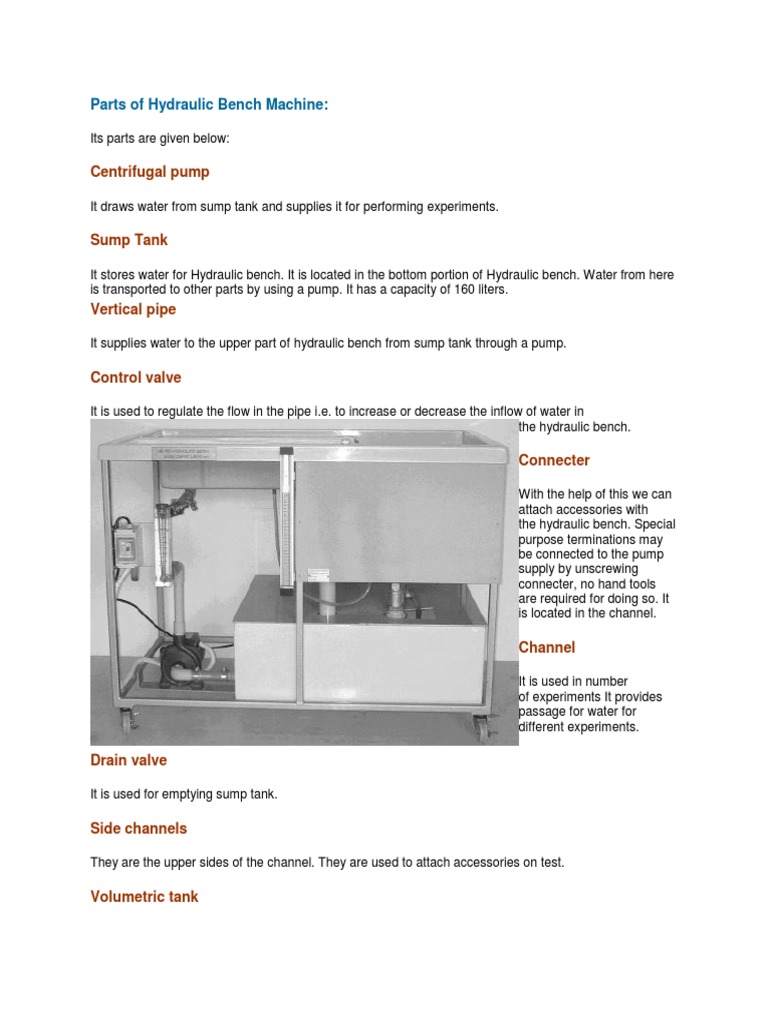

PARTS OF HYDRAULIC CENTRIFUGAL PUMPCentrifugal pump is used for drawing water form sump tank and supply it for performing experiments. The set up is a self-contained water recirculation unit provided with a top tray sump tank and a measuring tank. Its simple design allows for easy operation.
